Mining Heap Leach Pad Liners: Maximizing Mineral Recovery Through Advanced Material Science

Professional installation of high-performance geomembrane liners on a large-scale heap leach pad site.

The economic viability of a heap leach mining operation depends entirely on the integrity of the containment system. In this high-stakes environment, the geomembrane liner serves as the “floor” of the profit center. Every drop of pregnant leach solution (PLS) that escapes through a breach represents a direct loss of mineral recovery and a reduction in return on investment (ROI). To maximize recovery of gold, copper or uranium, engineering teams must prioritize advanced material science and rigorous installation protocols.

The Role of the Geomembrane in Mineral Recovery

In heap leaching, a chemical solution, typically an alkaline cyanide for gold or sulfuric acid for copper, percolates through stacked ore to dissolve precious metals. The resulting pregnant solution must be collected with near-perfect efficiency. The geomembrane liner system provides the primary barrier that prevents this valuable solution from migrating into the subgrade.

Failure to maintain a monolithic barrier leads to two catastrophic outcomes:

1. Revenue Loss: The loss of dissolved minerals reduces the total yield of the mine.

2. Environmental Liability: The seepage of process chemicals into groundwater triggers regulatory fines and remediation costs.

Engineers must view the liner not as a simple plastic sheet but as a critical piece of processing equipment.

Material Specifications: HDPE vs. LLDPE

Selecting the base polymer is the most critical decision in the design phase. High-Density Polyethylene (HDPE) and Linear Low-Density Polyethylene (LLDPE) are the industry standards, each offering distinct mechanical and chemical advantages.

• High-Density Polyethylene (HDPE): Specify HDPE for primary containment in gold and copper leaching because of its superior chemical resistance. HDPE meeting GRI-GM13 standards provides the highest level of protection against aggressive leaching solutions. It also resists ultraviolet (UV) radiation and maintains structural integrity over decades of exposure.

• Linear Low-Density Polyethylene (LLDPE): Use LLDPE where the design requires high multiaxial strain capacity. In applications with irregular subgrades or high settlement potential, LLDPE (meeting GRI-GM17) provides superior flexibility and elongation. This prevents stress cracking and puncture in areas where the liner must conform to the underlying terrain.

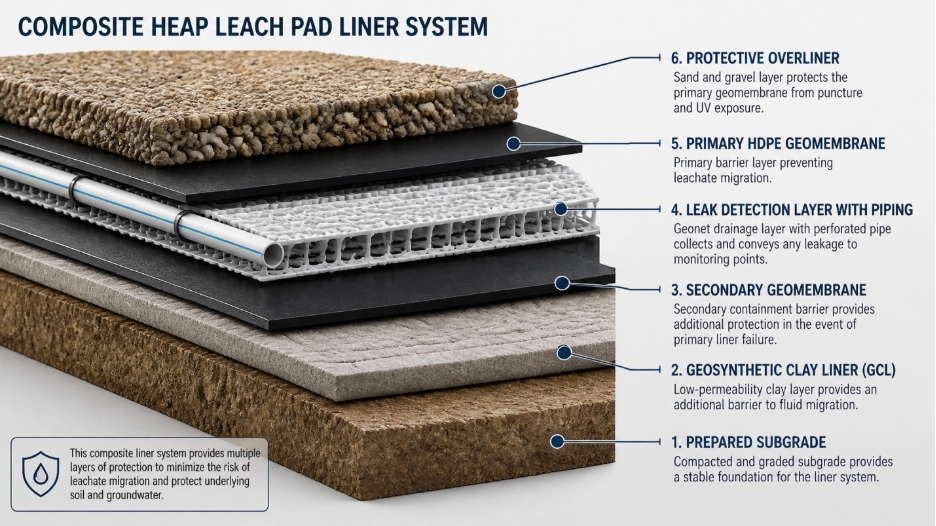

Technical cross-section detailing the layers of a high-performance mining containment system.

Chemical Resistance: Surviving Cyanide and Acids

Industrial liners in the mining sector must withstand extreme pH conditions. Gold heap leaching uses dilute alkaline cyanide solutions, typically maintained at a pH of 10 to 11 to prevent the formation of toxic hydrogen cyanide gas. Conversely, copper leaching uses sulfuric acid solutions with a pH as low as 1.0.

Viaflex geomembranes are engineered with high-quality polymers and stabilizers to ensure chemical compatibility. These materials must resist oxidative degradation and maintain tensile strength even after prolonged contact with aggressive reagents. Review the Viaflex data sheets to confirm chemical compatibility with your specific ore-processing chemistry.

Puncture Resistance Under Massive Ore Loads

Heap leach pads often reach heights of 100 meters or more, exerting immense downward pressure on the liner system. Furthermore, the use of heavy machinery, such as bulldozers and stackers, during the ore-loading process creates significant mechanical stress.

To mitigate the risk of puncture:

• Implement a Protective Overliner: Use a layer of crushed stone or sand to act as a cushion between the raw ore and the geomembrane.

• Select Appropriate Thickness: Specify liners between 60 mil and 100 mil depending on the calculated head pressure and ore angularity.

• Integrate Geotextiles: Deploy heavy-weight nonwoven geotextiles as a secondary protective layer to distribute loads and prevent localized stress concentrations.

The Composite Advantage: GCL and Secondary Containment

Modern engineering standards require the use of composite liner systems. A composite system combines a geomembrane with a Geosynthetic Clay Liner (GCL) or compacted clay. This configuration ensures that even if a pinhole leak occurs in the primary geomembrane, the secondary low-permeability layer restricts the flow of the solution.

Effective leak detection and recovery systems (LCRS) must be installed between the primary and secondary barriers. This allows operators to monitor the pad’s performance in real time and recover any solution that bypasses the primary liner.

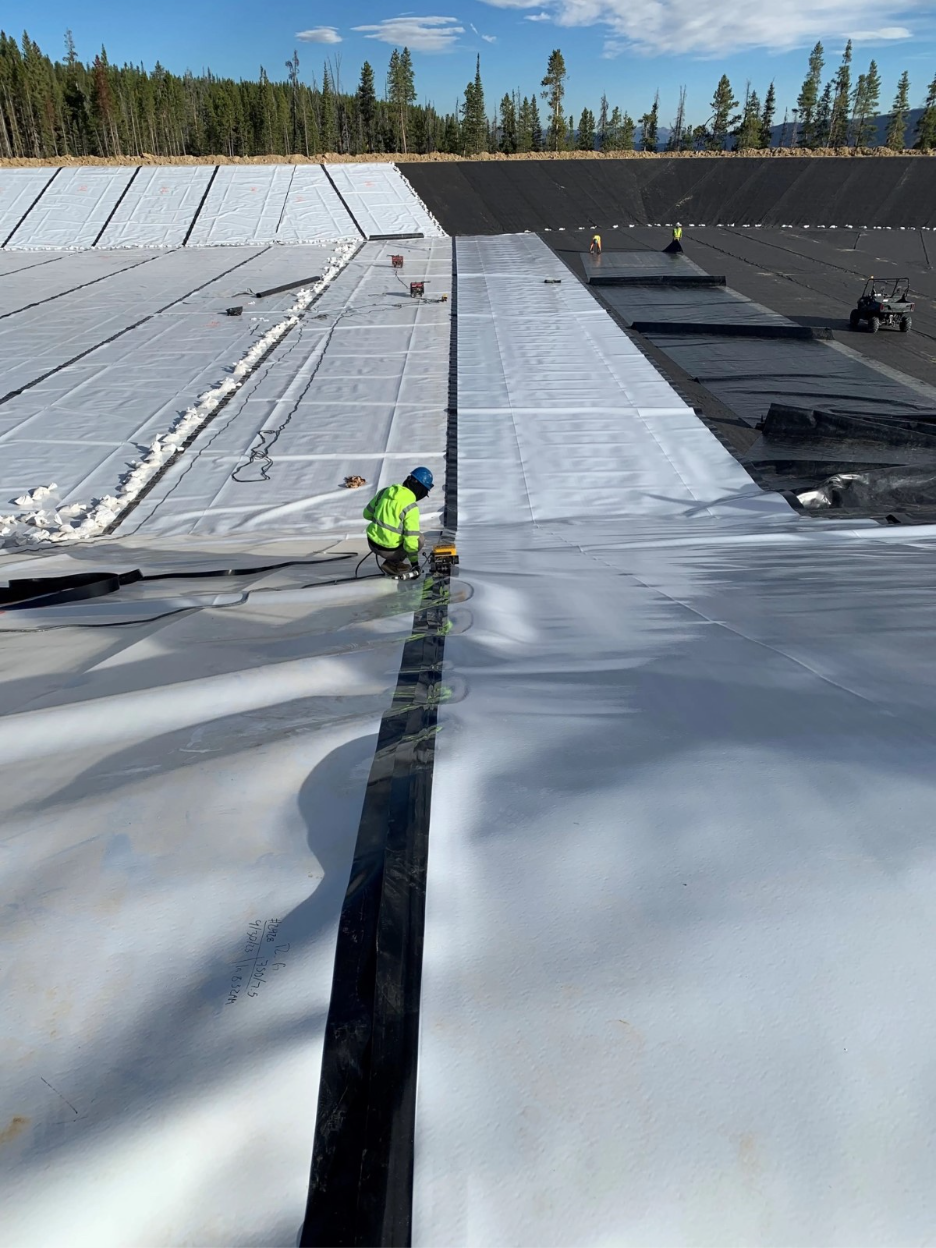

Viaflex technicians perform heat fusion seaming to ensure a leak-proof barrier for industrial containment.

Total Solution: Manufacturing and Installation

The quality of the material is only half of the equation. A high-performance liner will fail if the field seaming is inadequate. Viaflex provides a fully integrated solution through Colorado Lining International (CLI), a Viaflex company. This integration ensures that the material manufactured in US facilities is installed by the same organization that understands its technical properties.

• Expert Fabrication: Viaflex utilizes heat fusion technology to create large-scale custom panels in a controlled factory environment. This process reduces the number of field seams by up to 80%. Fewer field seams result in a faster installation schedule and a significantly lower risk of human error during the welding process.

• Certified Installation and Inspection: The installation team consists of IAGI (International Association of Geosynthetic Installers) Certified Welding Technicians. Every seam undergoes rigorous testing, including air pressure testing for dual-track welds and vacuum box testing for extrusion welds. Adherence to ASTM standards during the quality control phase is non-negotiable.

Calculating ROI: The Cost of Solution Loss

When evaluating the cost of a heap leach liner, engineers must look beyond the initial capital expenditure (CAPEX). The true value lies in the operational expenditure (OPEX) and recovery efficiency.

Consider a hypothetical gold mine processing 1,000,000 tons of ore. If a low-quality liner system results in a 1% loss of pregnant solution, the financial impact over the life of the mine can reach millions of dollars. Investing in an 80-mil HDPE liner with expert installation, rather than a 60-mil code-minimum liner, provides a massive return through:

• Increased Metal Capture: Higher integrity liners ensure more solution reaches the processing plant.

• Reduced Remediation Risk: Avoiding environmental breaches prevents legal fees and soil cleanup costs.

• Operational Longevity: Durable liners resist degradation, allowing for multiple lifts of ore to be stacked on the same pad.

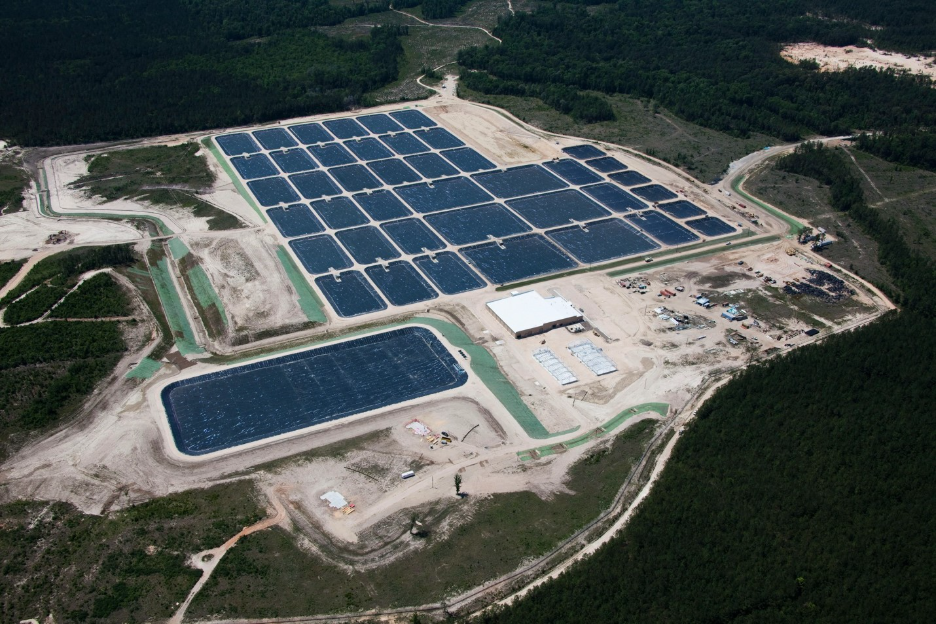

Managing large-scale mining footprints requires expert logistics and high-volume material manufacturing.


Title: Massive Scale Heap Leach Pad Project
Caption: Managing large-scale mining footprints requires expert logistics and high-volume material manufacturing.

Directives for Engineering Success

Follow these technical mandates to ensure the success of your mining containment project:

• Mandate Subgrade Preparation: Require a smooth, firm and debris-free subgrade to prevent liner deformation.

• Enforce Destructive Testing: Perform regular destructive tests on field seams to verify peel and shear strength.

• Utilize Drop-In Specs: Access Viaflex drop-in specs to ensure your project documentation reflects current industry benchmarks.

• Partner Early: Consult with Viaflex during the design-build phase to optimize panel layouts and material selection.

Heap leach pads are the foundation of modern mineral extraction. By prioritizing advanced material science, chemical resistance and certified installation, mining operations can significantly improve mineral recovery and project ROI. Viaflex remains the only US-based fully integrated provider capable of managing the entire lifecycle of a geomembrane project, from polymer selection to final inspection.

For technical consultations or to request samples of our mining geomembranes, contact the Viaflex Geomembrane & Engineering team today.
