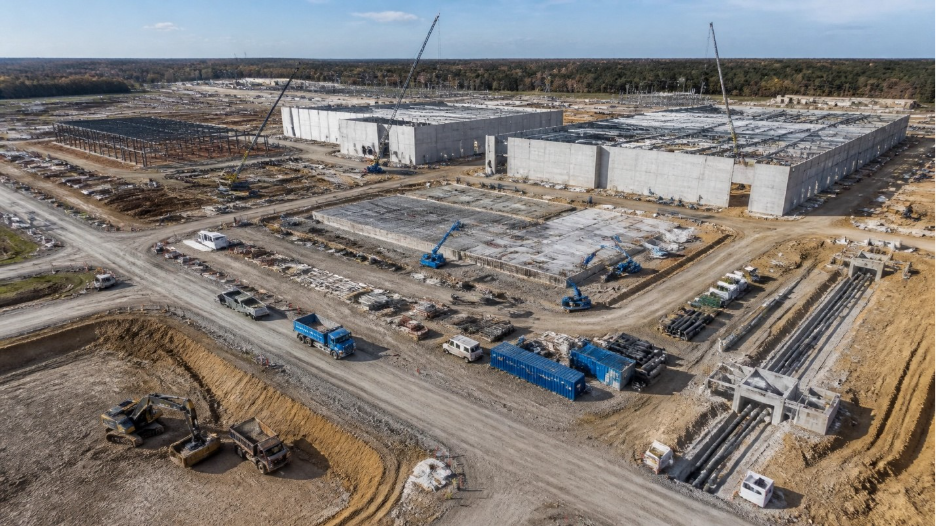

Caption: Coordinate site protection, utility routing and phased construction across large-scale data center developments.
Data center construction requires more than structural steel, concrete and electrical equipment. Protect the facility from settlement, moisture, soil gases, weather, dust and utility failures throughout every project phase.
Specify materials that support site integrity from initial grading through utility installation and final commissioning. Coordinate civil, structural, architectural, mechanical and electrical requirements before procurement.
Viaflex provides a broad range of data center construction materials, including underslab barriers, reinforced enclosure films, HDPE pressure pipe, HDPE conduit, TPO roof membranes, DuraDefend industrial shrink wrap and geomembrane liners. This product range enables project teams to consolidate multiple protection, transportation and containment needs with a single experienced supplier.
NOTE: Use this guide to organize material planning. Require the project engineer, architect and applicable authorities to confirm final specifications, installation methods, code compliance and product suitability.
Data center site preparation establishes the foundation for long-term facility performance. Large campuses often require extensive clearing, excavation, grading, soil improvement, stormwater controls and underground utility coordination.
Address these risks before foundation work begins:
Control erosion and manage stormwater during construction. Use detention or retention systems as required by the site design and local regulations. Consider a lined basin when the project requires seepage control or containment of stormwater, fire water, process water or construction water.

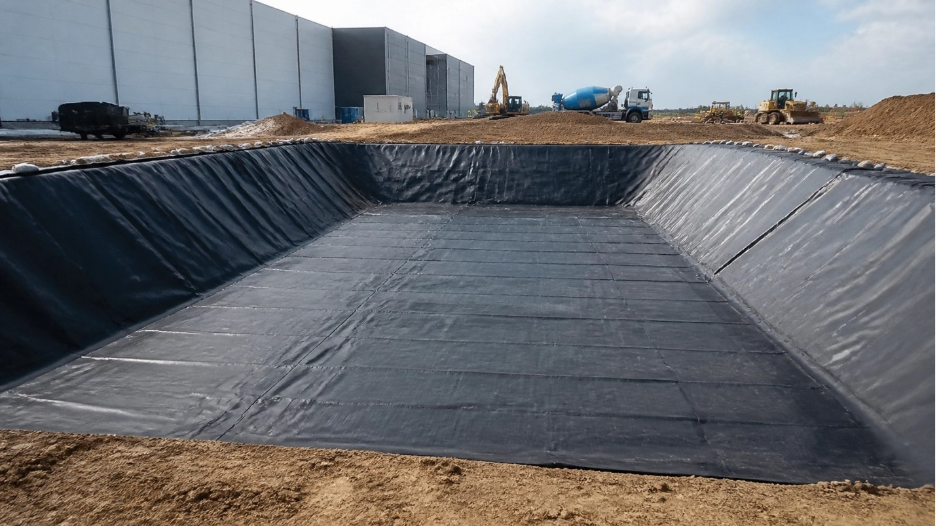

Caption: Use a properly installed geomembrane liner when the civil design requires seepage control or contained water storage.
Concrete slabs can absorb moisture vapor from the soil or granular fill beneath. That vapor can affect flooring, coatings, adhesives, equipment areas and indoor environmental conditions.
Specify a data center vapor barrier when the design requires control of moisture migration beneath a slab. Evaluate the following criteria:
The Viaflex VaporBlock® Series provides a high-performance polyethylene underslab moisture barrier. The product is available in 10-mil and 15-mil options and is designed for ultra-low moisture vapor permeability, puncture resistance, high tensile tear strength and resistance to decay and degradation.
Install the barrier as a continuous system
Do not treat the data center underslab vapor barrier as isolated sheets beneath the slab. Treat it as a continuous system.
Maintain documentation for material lot information, installation conditions, repairs and inspection approval.
A standard moisture barrier does not automatically provide the same resistance to soil gases. A gas-barrier evaluation is required when site investigations identify radon, methane, VOCs or other soil-gas concerns.
The VaporBlock Plus® Series uses a seven-layer co-extruded polyethylene construction with an EVOH core. Viaflex describes the product as providing enhanced resistance to gas and moisture transmission. The permeability of VaporBlock Plus is more than 100 times lower than that of typical high-performance polyethylene vapor retarders for methane, radon and other harmful VOCs.
Use VaporBlock Plus when the environmental report, building design or owner requirements justify enhanced gas-barrier performance.
Review:
Use compatible accessories and follow the manufacturer’s installation instructions. Seal seams and penetrations with the same level of attention given to the membrane field. A gas barrier with unsealed joints or unprotected penetrations cannot provide a continuous protective layer.

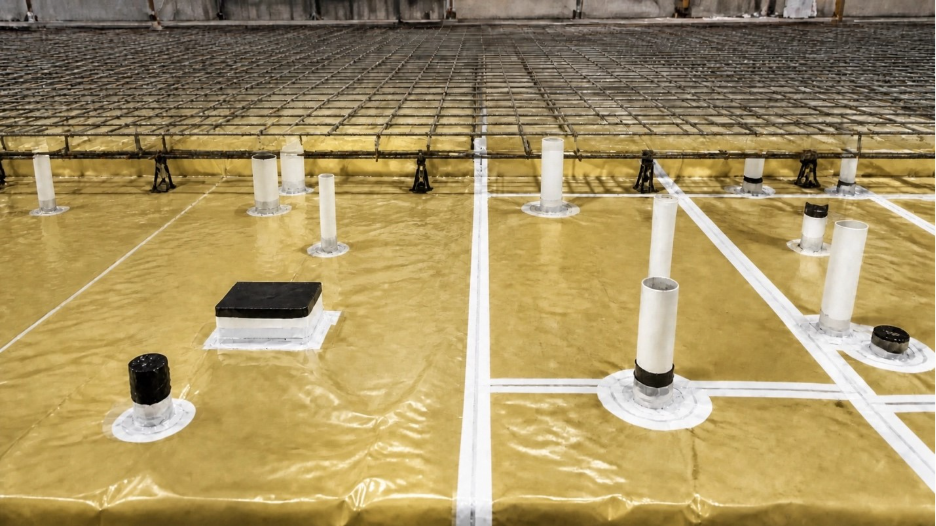

Caption: Install VaporBlock Plus as a continuous gold underslab moisture and gas barrier with clean white seam and repair tape, sealed penetrations and coordinated slab detailing before concrete placement.
Data center schedules often require interior work to continue while portions of the permanent building envelope remain incomplete. Protect concrete, finishes, equipment and work areas from rain, wind and airborne dust.
Use Dura-Skrim® reinforced construction films for applications such as:
The Dura-Skrim® R-Series R5 and R10 products use a reinforced extrusion laminate with diagonal polyester scrim. Their clear polyethylene outer layers provide a durable, reinforced film construction. Clear films can support visibility and light transmission where the selected product and project conditions allow.
Select R5 or R10 based on the required strength, handling conditions, enclosure size, wind exposure and expected duration. Use reinforcement to improve resistance to tears and punctures during demanding installation conditions. Secure the film with an appropriate attachment system and reduce wind whipping at edges, seams and scaffold connections.
Viaflex also offers R5FR and R10FR options for projects requiring a fire-retardant construction film. Confirm the appropriate FR product against the project specifications and applicable requirements. Do not assume that an FR designation alone meets the project’s fire, smoke or code criteria.

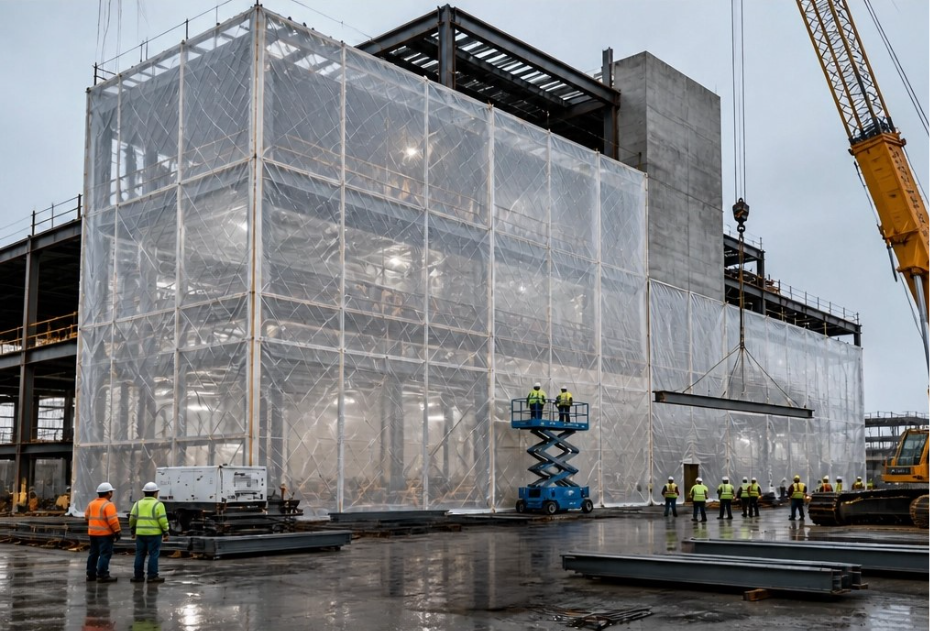

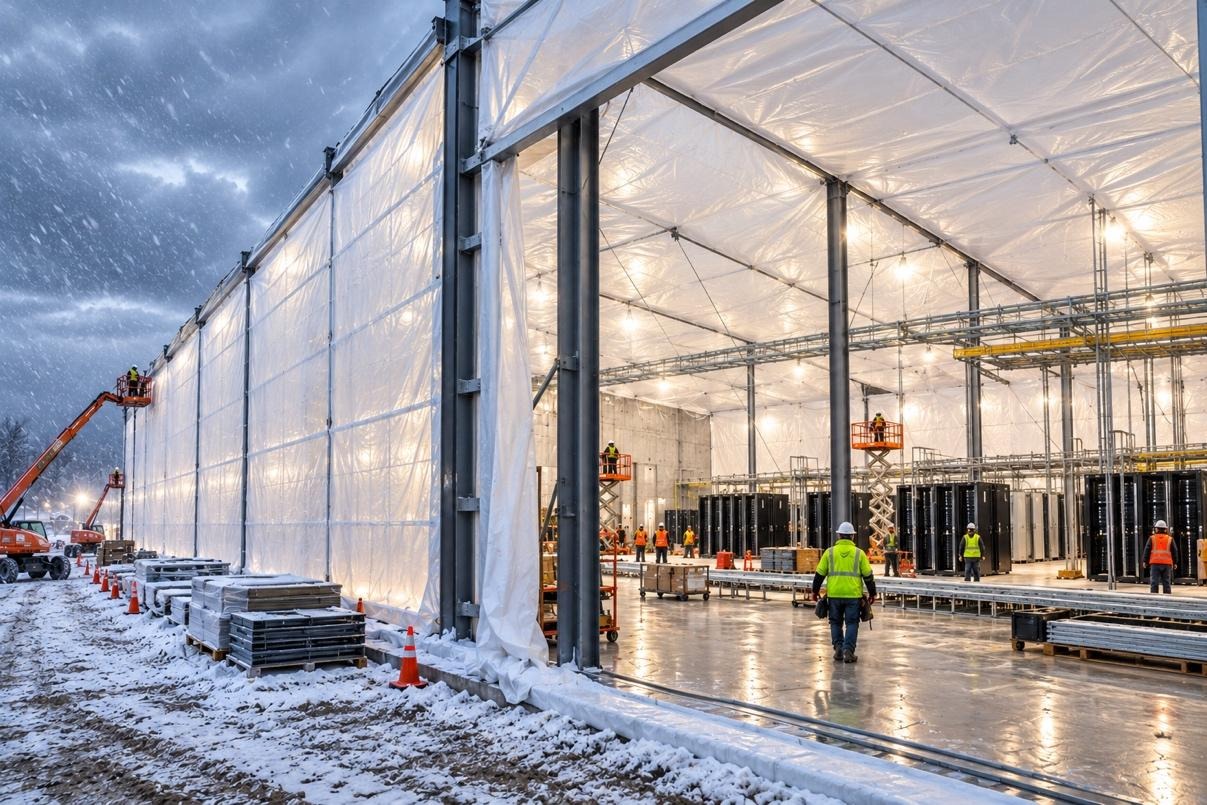

Caption: Select reinforced enclosure film that maintains weather protection, light transmission and durability under active jobsite conditions.
Roofing integrity matters in data center construction because the roof assembly must protect critical interiors from water intrusion and long-term envelope deterioration. Manage exposure from rain and moisture intrusion, UV exposure, thermal cycling, wind uplift, rooftop service traffic and long-term maintenance access through a properly designed and maintained roofing system.
Viaflex DuraApex™ is a TPO roofing membrane available in smooth and textured versions. When specified and installed as part of a complete roofing assembly, TPO roofing can provide a heat-weldable, continuous waterproofing layer.
Use smooth DuraApex for standard roof field applications when the roofing design calls for a smooth TPO membrane. Use textured DuraApex for designated service paths or areas requiring additional surface traction, subject to the roofing design and the manufacturer’s guidance.
Confirm final product selection, assembly design, attachment method, seam welding, drainage, flashing, penetrations, fire performance and code compliance against current DuraApex product documentation, project specifications and applicable requirements.

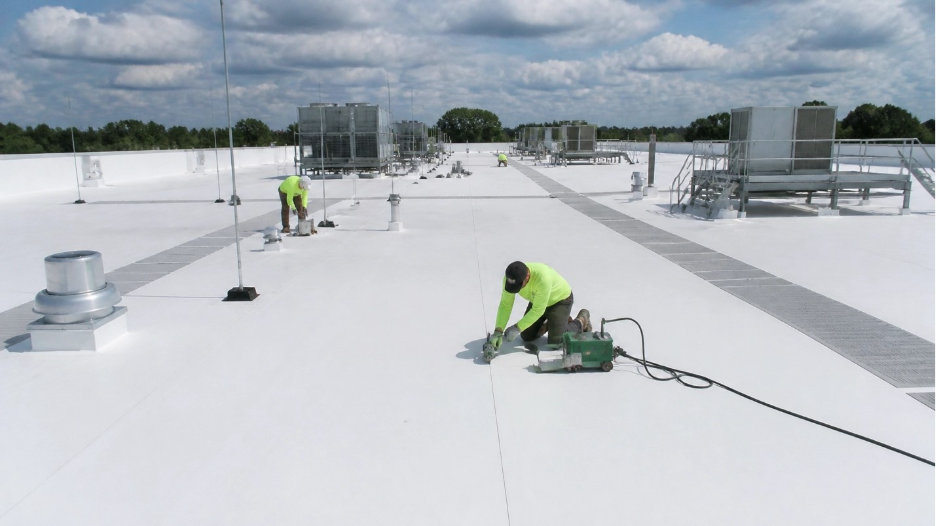

Caption: Evaluate DuraApex smooth TPO roofing where the project requires a continuous heat-weldable roof membrane within a complete roofing assembly.

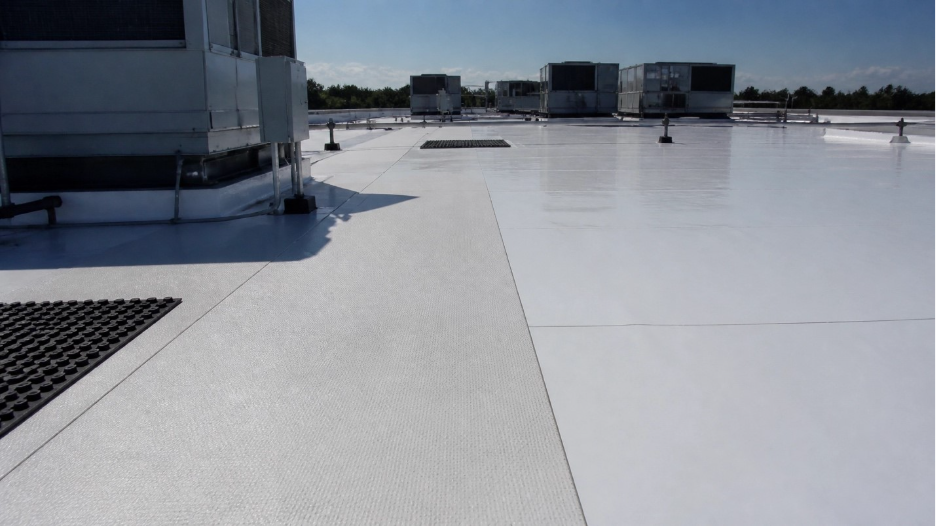

Caption: Use textured DuraApex in designated roof service areas where the design requires additional surface traction and maintenance access control.
Data center equipment, modular units, server racks, cooling components and other high-value components can face road salt, moisture, condensation, dust, UV exposure and wind during shipment from manufacturers to facility sites and while staged outdoors.
Use DuraDefend industrial shrink wrap to evaluate equipment-protection strategy for transport and staging. DuraDefend can function as a drum-tight, heat-shrunk environmental cocoon for complex equipment.
DuraDefend reinforced shrink wrap uses a multi-layer construction with a 1000-denier diamond-patterned scrim that helps contain tears and resist punctures under demanding transport conditions. Product documentation also identifies -70°F cold-crack resistance and approximately one-year exposed outdoor service life. Treat those values as product-documentation claims, not guarantees.
Evaluate reinforced DuraDefend for high-value equipment, highway transport, exposed logistics routes and rugged conditions. For standard industrial coverage and staging where project conditions do not require added scrim reinforcement, review DuraDefend non-reinforced shrink wrap.
Confirm final material selection, coverage method, heat-shrink installation procedures, ventilation, access points, edge protection and shipment conditions against current product documentation and project requirements.
Data centers require coordinated water infrastructure for cooling systems, process water, fire protection and other site-specific applications. The design team must select the material based on pressure, temperature, fluid, burial conditions, connection details and applicable requirements.
Viaflex HDPE pressure pipe can support specified water conveyance applications where its characteristics align with the design.
HDPE pressure pipe offers:
Do not confuse pressure pipe with conduit. Pressure pipe carries fluids at design pressure. Conduit protects and routes cables or other utilities.
Require the design team to confirm the pipe diameter, pressure class, temperature limits, fusion procedures, fittings and testing and installation requirements. Review product documentation before including the pipe in a project specification.

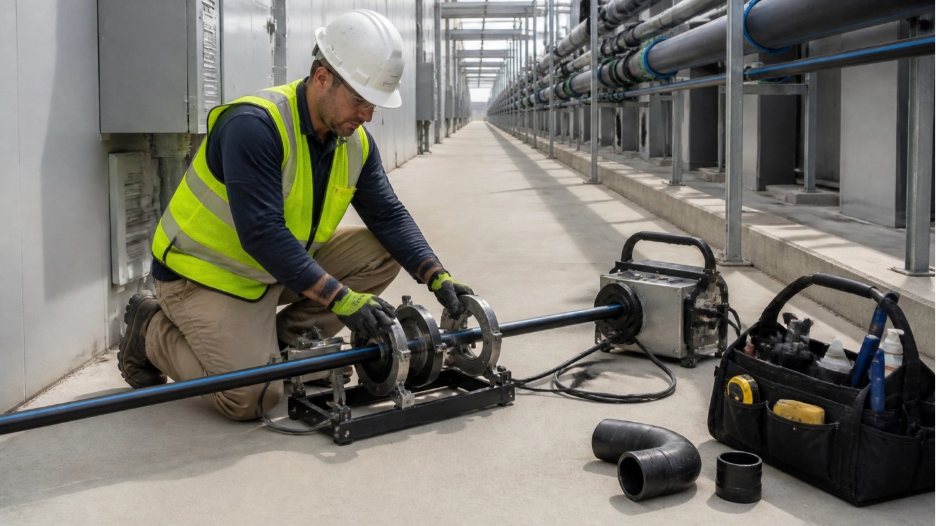

Caption: Viaflex manufactures HDPE pressure pipe up to 4 inches in diameter for specified data center water conveyance applications where properly fused installation is required.
Data centers rely on extensive telecommunications, power distribution and control systems. Protect underground cable routes from crushing, abrasion, moisture exposure and construction damage.
Viaflex HDPE conduit supports telecommunications routing where specified by the design team.
Conduit’s flexible and durable construction can support:
Coordinate conduit size, pull length, bend radius, duct-bank configuration, separation, tracer requirements, connections and cable installation methods. Use smooth-wall orange telecom conduit where telecommunications routing requires it. Keep pressure pipe and conduit schedules separate to prevent material, sizing and testing errors.

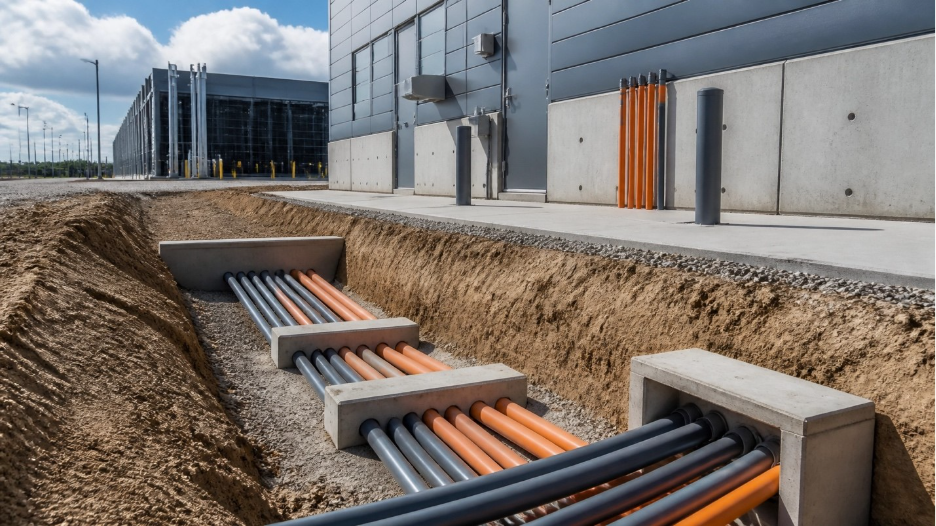

Caption: Keep conduit systems distinct from pressure pipe and organize utility pathways for protected cable routing and future expansion.
Do not assume that every data center needs a pond liner. Determine the requirement based on the civil design, water-management plan, environmental permits, groundwater conditions and owner criteria.
A data center pond liner or geomembrane system may support:
Viaflex geomembrane products can be evaluated for project-specific containment applications. Consider material chemistry, thickness, subgrade preparation, geotextile protection, panel dimensions, seaming requirements, penetrations, anchorage and inspection.
Ask about fabricated panel options that allow larger prefabricated sections to reduce field seaming. Require the engineer to approve the selected material and containment details before fabrication.
Select compatible materials from a single supplier when doing so supports project coordination. Consolidating site protection, VaporBlock and VaporBlock Plus underslab barriers, Dura-Skrim R5, R10, R5FR and R10FR enclosure films, DuraApex TPO roofing, DuraDefend industrial shrink wrap for equipment transport and staging, HDPE pressure pipe, HDPE conduit and Dura-Skrim N-Series pond liners can simplify procurement, reduce the number of vendor interfaces and improve communication among estimating, engineering, purchasing and field teams.
Viaflex is positioned to serve as a broad-spectrum supplier for these data center construction needs. Use the construction product portfolio to review barrier, enclosure and roofing options. Review geomembrane solutions for lined containment applications. Then coordinate product selection with the Viaflex team and the project engineer.
One supplier does not replace engineering judgment. Require project-specific design review, code compliance, material compatibility checks and installation verification for every system.
What materials are needed to build a data center? A data center requires structural materials, foundations, roofing and wall systems, electrical equipment, cooling systems, fire protection, water infrastructure, telecommunications pathways and site drainage. Protective materials may include an underslab vapor barrier, a gas barrier where soil conditions warrant it, temporary enclosure film, HDPE pressure pipe, HDPE conduit and geomembrane liners for specified containment basins.
Why does a data center need an underslab vapor barrier? A data center needs an underslab vapor barrier to limit moisture vapor migration from the soil or granular fill into the concrete slab. Properly selected and continuously installed barriers help protect flooring, coatings, adhesives and controlled interior environments from moisture-related problems.
When is an EVOH gas barrier appropriate? Use an EVOH gas barrier when geotechnical or environmental investigations identify radon, methane, VOCs or other soil-gas risks, or when the project specification requires enhanced gas resistance. Confirm the required permeation performance, seam details and penetration treatment before selecting VaporBlock Plus.
Why is TPO roofing relevant to data center construction? The roof is a critical part of the building envelope and must help manage water, weather and maintenance risks. DuraApex smooth or textured options can be evaluated for project-specific roof zones.
How can data center equipment be protected during transport? DuraDefend reinforced shrink wrap can be considered a drum-tight exterior barrier for equipment moving from manufacturers to data center sites, with final selection based on equipment geometry, route, duration and environmental exposure.
How are HDPE pipe and conduit used on data center projects? Use HDPE pressure pipe for specified fluid conveyance, such as cooling water, process water or fire protection. Use HDPE conduit to route and protect telecommunications, power and utility cables. Keep the two product categories separate because pressure pipe and conduit serve different functions and require different design and testing criteria.
When does a data center need a lined pond or containment basin? A data center may need a lined pond or containment basin when the civil design requires stormwater detention, retention, fire-water storage, process-water storage, construction-water storage or seepage control. Confirm the requirement through the site design, environmental permits and project-specific engineering criteria.
Protect data center integrity at every phase. Prepare the site with stable foundations and controlled drainage. Install a continuous underslab vapor barrier. Specify an EVOH gas barrier when site conditions warrant enhanced gas protection. Enclose unfinished areas with reinforced construction film. Protect the building envelope with properly specified TPO roofing. Protect high-value equipment during transport and staging with the appropriate shrink wrap system. Route water and cables through properly selected HDPE systems. Line containment basins only when the design requires seepage control.
Get the materials for these critical data center construction applications from one experienced supplier. Review Viaflex construction products, geomembrane products, HDPE pressure pipe, HDPE conduit, DuraDefend reinforced shrink wrap and DuraDefend non-reinforced shrink wrap. Contact Viaflex to request DuraApex and DuraDefend product documentation and coordinate your data center project material requirements with the Viaflex team.
