Underslab Vapor Barrier Installation: Choosing EVOH vs. Standard Barriers

ASTM E1745 Class A vapor barrier installed below rebar framework, protecting concrete from moisture migration

Effective underslab protection is a critical requirement for any modern construction project. Failure to manage moisture migration and soil gas intrusion results in catastrophic flooring failures, compromised indoor air quality and structural degradation. This guide provides technical directives for selecting the appropriate barrier material and executing a precise installation following ASTM standards.

Understanding Material Performance Standards

Selection of an underslab barrier begins with ASTM E1745. This standard classifies plastic water vapor retarders into three categories: Class A, Class B and Class C. While all three classes must maintain a water vapor permeance of 0.1 perms or less, they differ significantly in physical durability.

• Class A: Represents the highest tensile strength (45 lb/in) and puncture resistance (2200 g). Utilize Class A barriers for commercial and industrial slabs where heavy foot traffic, rebar placement and machinery are expected before the pour.

• Class B: Provides moderate durability (30 lb/in tensile, 1700 g puncture). This is suitable for lighter commercial applications with less aggressive installation environments.

• Class C: Offers the lowest threshold for physical stress (13.6 lb/in tensile, 475 g puncture). Use this class only in low-impact scenarios where installation abuse is minimal.

Engineered films, such as those in the Viaflex construction product line, often exceed these minimum requirements to ensure long-term site performance. Choosing a film with lower permeance (e.g., 0.01 perms) provides an additional safety factor against the natural degradation of materials over the life of the building.

EVOH Barriers vs. Standard Moisture Barriers

Determining whether to use a standard moisture barrier or an EVOH (Ethylene Vinyl Alcohol) barrier depends on the specific contaminants present in the soil.

Standard Moisture Barriers

Standard high-performance vapor barriers are made from specialized polyethylene resins. Their primary purpose is to prevent the upward migration of water vapor. Use them when the only concern is protecting floor finishes and preventing mold growth. They are the baseline for residential and commercial projects on clean sites. These materials effectively block liquid water and water vapor but lack the molecular density to stop smaller gas molecules over extended periods.

EVOH Gas Barriers

EVOH barriers are multi-layer co-extrusions featuring a specialized core. This core provides significantly higher resistance to gases and volatile organic compounds (VOCs). EVOH has a crystalline structure that creates a tortuous path for gas molecules, making it nearly impermeable to oxygen, radon and methane.

When to Use an EVOH Underslab Barrier:

1. Radon is present: EVOH effectively blocks radon gas entry into the building envelope, which is a leading cause of lung cancer in non-smokers.

2. Brownfield sites: Projects built on formerly industrial land require protection against methane and hydrocarbon vapors that can accumulate under the slab.

3. Chlorinated solvents: If soil testing reveals chemical plumes such as PCE or TCE, a standard polyethylene barrier is insufficient as these chemicals can permeate through it over time.

4. Sensitive occupancies: Hospitals, schools and laboratories often mandate gas-tight barriers to ensure maximum indoor air quality and compliance with environmental regulations.

EVOH barrier providing gas-tight protection against radon, methane and chemical vapors

The Direct-to-Slab Advantage

Historical construction practices often included a “blotter layer” of sand between the vapor barrier and the concrete slab. Modern research and ACI (American Concrete Institute) guidelines have rendered this practice obsolete.

• Eliminate the sand layer: Placing a barrier directly under the concrete prevents the entrapment of water within the sand. Trapped water in a blotter layer eventually moves upward, leading to delamination of adhesives and floor coverings.

• Control curing: While some argue sand helps with curing, using the direct-to-slab method combined with proper curing compounds or wet curing techniques produces a superior, more predictable result.

• Reduce curling: Direct contact with the vapor barrier helps maintain a more uniform moisture profile through the depth of the slab, which reduces the tendency of the slab edges to curl upward.

Step-by-Step Installation Directives

Proper installation is as important as material selection. Follow these directives based on ASTM E1643 to ensure a continuous monolithic membrane.

1. Subgrade Preparation

Prepare the subgrade to be level and well-compacted. Remove all large rocks, debris and sharp objects that could puncture the film. A smooth granular base provides the best foundation for the barrier. If the subgrade is excessively rough, consider a thin layer of fine sand or a non-woven geotextile as a cushion before laying the barrier.

2. Barrier Placement

Unroll the vapor barrier over the prepared subgrade. Align the longest dimension of the sheets parallel to the direction of the concrete pour. This orientation reduces the likelihood of the concrete flow lifting the edges of the barrier during placement. Minimize wrinkles and ensure the film lies flat against the ground.

3. Manage Overlaps

Overlap all joints by a minimum of six inches. Ensure the overlap faces away from the direction of the concrete pour. Clean the overlap area of any dust or moisture before applying tape. Use a high-quality VaporBond Tape to seal every seam. Apply firm pressure to the tape using a roller to ensure a permanent, airtight bond.

4. Perimeter Termination

Extend the barrier over the footings and terminate at the foundation wall or grade beam. Seal the edge of the barrier to the foundation using manufacturer-approved accessories such as VaporSeal Tape. This creates a “bathtub” effect that prevents moisture and soil gases from bypassing the membrane at the slab edges.

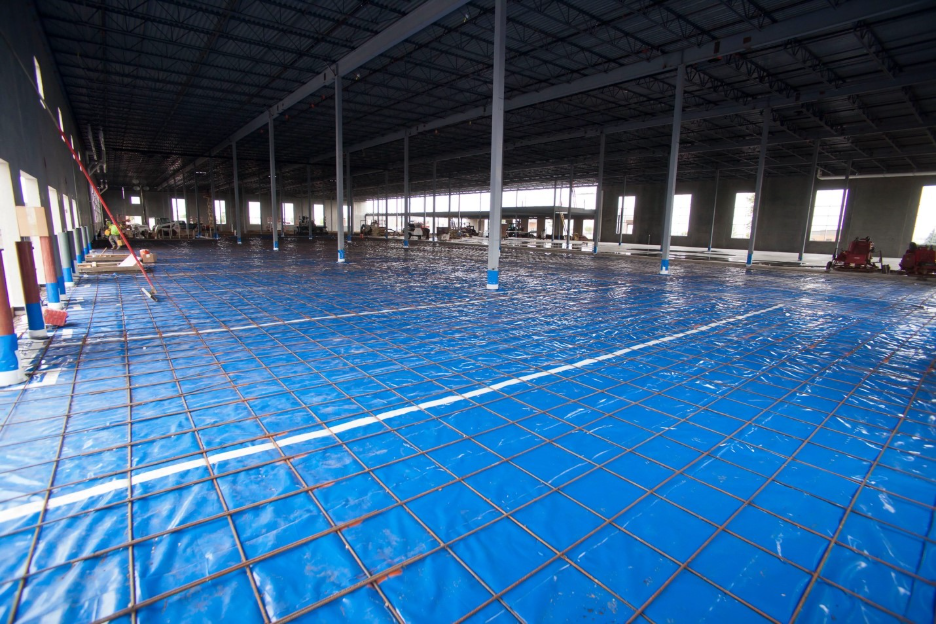

Continuous vapor barrier installation with six-inch sealed overlaps for warehouse slab protection

5. Sealing Penetrations

Pipe penetrations and columns are the most common failure points in a vapor barrier system. Do not simply cut the barrier and leave it loose around pipes.

• Cut precisely: Minimize the gap between the barrier and the penetration.

• Use prefabricated boots: Utilize systems like the VaporBoot Plus for a professional, durable seal.

• Apply sealants: For irregular penetrations or groups of pipes, use a liquid sealant such as Pour-N-Seal to create a gas-tight gasket that conforms to any shape.

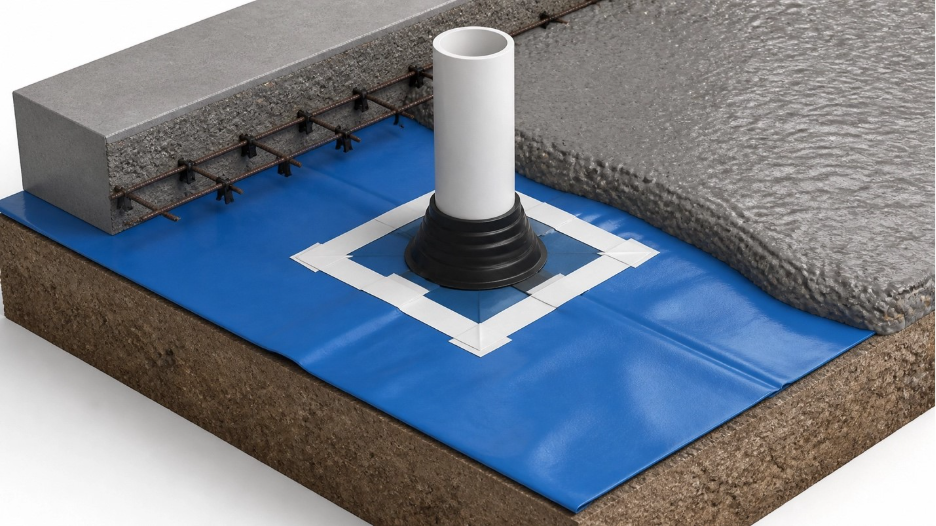

Properly sealed pipe penetration using prefabricated boot and liquid sealant

6. Rebar Support and Chair Selection

The use of rebar and wire mesh is standard in concrete slabs, but the supports (chairs) used to hold them in place can jeopardize the barrier.

• Select wide-base chairs: Use rebar chairs with a large, flat base to distribute the load.

• Avoid point loads: Small, pointed feet on rebar supports will puncture the barrier under the weight of the concrete and the movement of workers.

• Inspect after placement: Once rebar is installed, conduct a second inspection to ensure no new punctures have occurred.

7. Inspection and Repair

Conduct a thorough walkthrough before the concrete pour. Identify any punctures, tears or unsealed seams.

• Patching: Repair any damage using a piece of the original barrier material.

• Sizing: Ensure the patch extends at least six inches beyond the damaged area in all directions.

• Sealing: Tape all four sides of the patch securely with specialized seam tape.

Crucial Installation Constraints

Adhere to these negative constraints to maintain the integrity of the barrier:

• Do not use sand blotter layers: As stated, this traps moisture and causes flooring failure.

• Do not drive stakes through the barrier: Use non-penetrating supports for forms and screeds. If stakes are unavoidable, they must be removed and the resulting holes must be patched and sealed immediately.

• Do not install on standing water: The subgrade must be dry and stable before the barrier is laid down to ensure proper tape adhesion and subgrade stability.

• Do not leave seams unsealed: A six-inch overlap without tape is not a barrier; it is a point of entry for moisture and gas.

• Do not use standard duct tape: Standard adhesives degrade in the high-alkalinity environment of wet concrete. Only use tapes specifically engineered for vapor barrier systems.

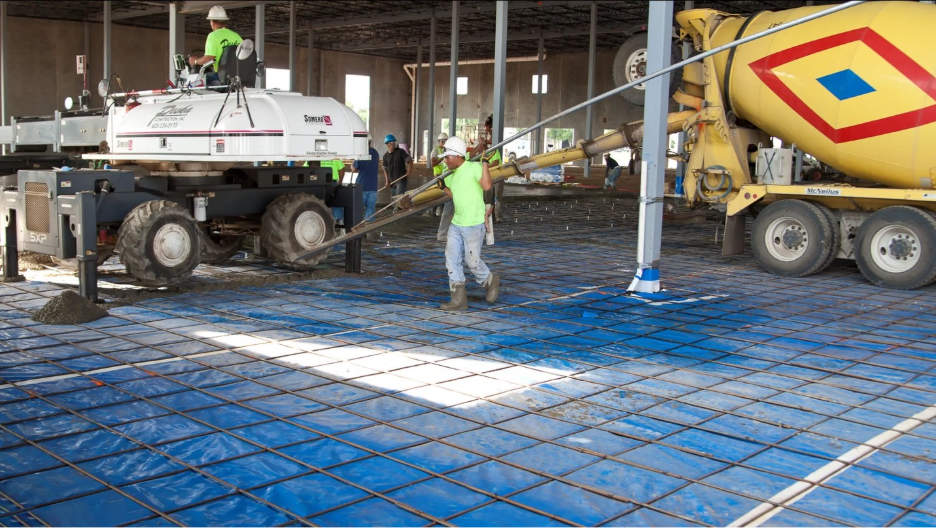

Final concrete placement over a properly sealed underslab vapor barrier system

Technical Summary of Vapor Protection

The decision between a standard moisture barrier and an EVOH gas barrier is driven by site-specific risks and long-term building use. While standard barriers address the universal need for moisture control to protect floor coverings, EVOH barriers provide an essential line of defense against hazardous soil gases and chemical vapors. Regardless of the material chosen, adherence to ASTM E1643 installation protocols is the only way to ensure the system performs as engineered.

Specifiers must prioritize high-quality engineered films that meet or exceed ASTM E1745 Class A requirements for any commercial project. Consult technical data sheets for specific permeance ratings and chemical resistance charts before finalizing a specification. For complex sites involving VOCs or high radon levels, coordinate with an environmental engineer to verify that the selected EVOH system meets the required mitigation standards. Proper execution during the installation phase is the most cost-effective way to prevent future liability and structural issues.
